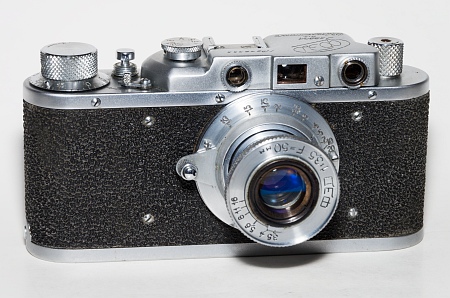

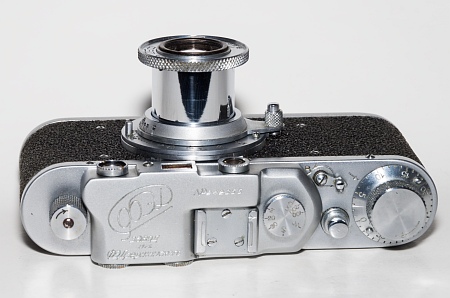

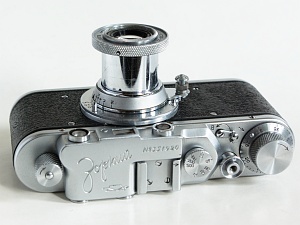

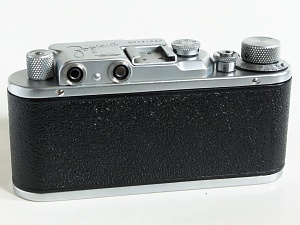

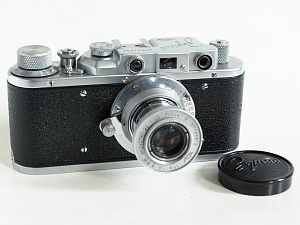

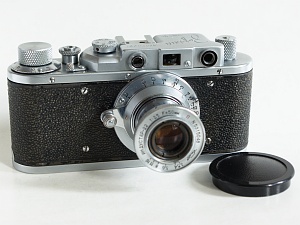

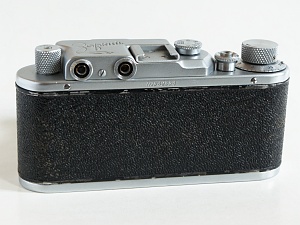

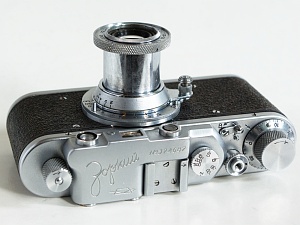

Lens
|
Industar 22 1:3.5/50, changeable lens (M39, Leica screwmount/LTM), filter 36mm.
|
Shutter
|
Horizontal focal plane shutter with Leica speeds 1/20,1/30,1/40,1/60,1/100,1/200,1/500 Sek. and Z.
|
Focussing
|
Coupled rangefinder, minimum distance approx. 1m.
|
Transport
|
Knobs for winding and rewinding, removeable bottom plate.
|
Size
|
approx. 135/70/33mm (without lens).
|

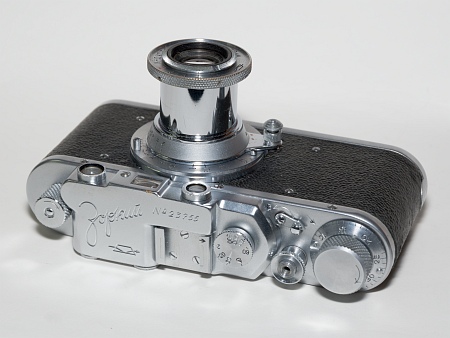

Lens
|
Industar 22 1:3.5/50, changeable lens (M39, Leica screwmount/LTM), filter 36mm.
|
Shutter
|
Horizontal focal plane shutter with Leica speeds 1/20,1/30,1/40,1/60,1/100,1/200,1/500 Sek. and Z.
|
Focussing
|
Coupled rangefinder, minimum distance approx. 1m.
|
Transport
|
Knobs for winding and rewinding, removeable bottom plate.
|
Size
|
approx. 135/70/33mm (without lens).
|

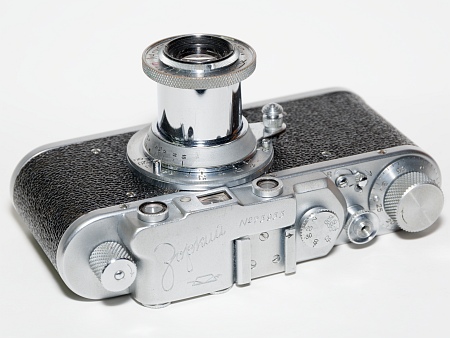

Lens
|
Industar 22 1:3.5/50, changeable lens (M39, Leica screwmount/LTM), filter 36mm.
|
Shutter
|
Horizontal focal plane shutter with Leica speeds 1/20,1/30,1/40,1/60,1/100,1/200,1/500 Sek. and Z.
|
Focussing
|
Coupled rangefinder, minimum distance approx. 1m.
|
Transport
|
Knobs for winding and rewinding, removeable bottom plate.
|
Size
|
approx. 135/70/33mm (without lens).
|

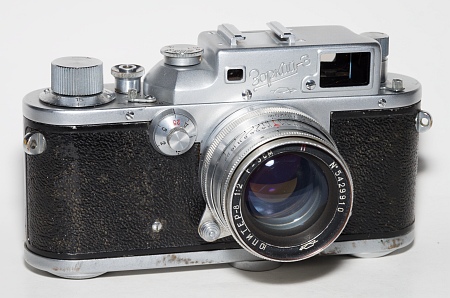

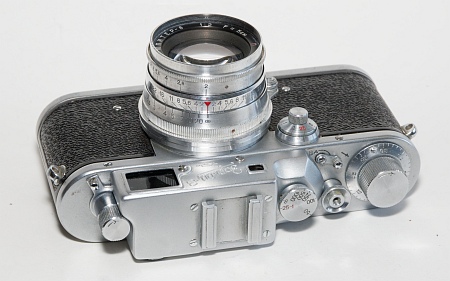

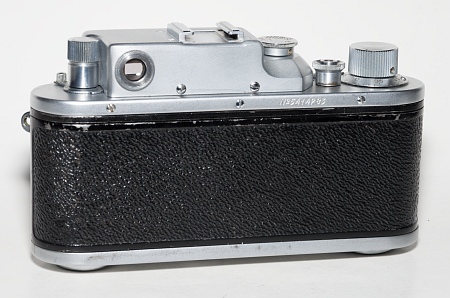

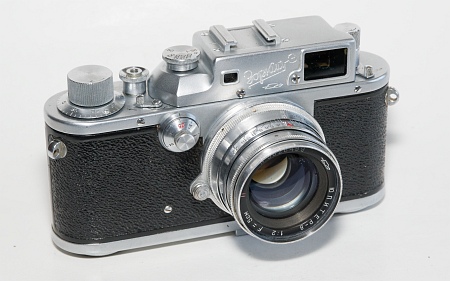

Lens
|
Jupiter 8 1:2/50, changeable lens (M39, Leica screwmount/LTM), filter thread 40.5mm.
|
Shutter
|
Horizontal focal plane shutter, 1,1/2,1/4,1/8,1/15,1/30,1/60,1/125,1/250,1/500,1/1000 Sek. and B.
|
Focussing
|
Coupled rangefinder, minimum distance approx. 1m.
|
Flash
|
PC-connector. Sync at 1/30 Sek. Flashdelay changeable from 0 to 25ms.
|
Transport
|
Knobs for winding and rewinding, removeable back.
|
Size
|
approx. 143/90/33mm (without lens).
|
Lens
|
Industar-50 1:3,5/50, changeable lens (M39, Leica screwmount/LTM).
|
Shutter
|
Horizontal focal plane shutter, 1,1/2,1/4,1/8,1/15,1/30,1/60,1/125,1/250,1/500,1/1000 Sek. and B.
|
Focussing
|
Coupled rangefinder, minimum distance approx. 1m.
|
Flash
|
PC-connector. Sync at 1/30 Sek. Flashdelay changeable from 0 to 25ms.
|
Transport
|
Knobs for winding and rewinding, removeable back.
|
Size
|
approx. 143/90/33mm (without lens).
|

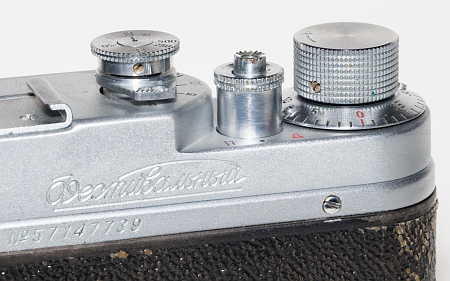

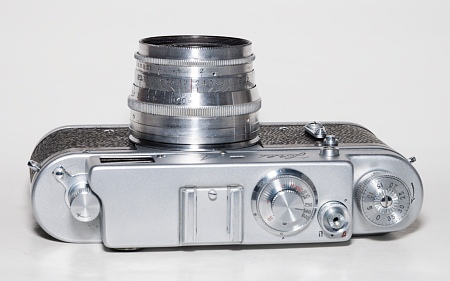

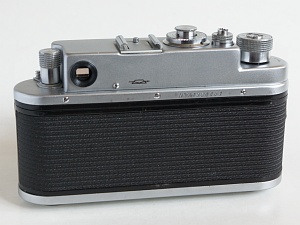

Lens
|
Industar 50 1:3,5/50, changeable lens (M39, Leica screwmount/LTM), filter thread 36mm.
|
Shutter
|
Horizontal focal plane shutter, 1,1/2,1/4,1/8,1/15,1/30,1/60,1/125,1/250,1/500,1/1000 Sek. and B.
|
Focussing
|
Coupled rangefinder, minimum distance approx. 1m.
|
Flash
|
PC-connector. Sync at 1/30 Sek. Flashdelay changeable from 0 to 25ms.
|
Transport
|
Fast wind lever, removeable back.
|
Size
|
approx. 143/90/33mm (without lens).
|

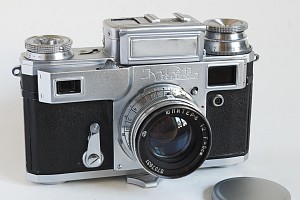

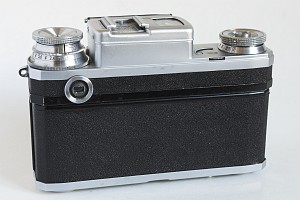

Lens
|
Jupiter 8 1:2/50, changeable lens (Contax/Kiev bajonet mount), filter thread 40.5mm.
|
Shutter
|
Vertical shutter with metal lamelles, 1/2,1/5,1/10,1/25,1/50,1/125,1/250,1/500,1/1250 Sek. and B. Selftimer.
|
Light meter
|
Uncoupled selenium light meter.
|
Focussing
|
Coupled rangefinder, wheel to focus, minimum distance approx. 0.9m.
|
Transport
|
Knobs for winding and rewinding, removeable back.
|
Size
|
approx. 140/88/42mm (without lens).
|
Lens
|
Jupiter 8 1:2/50, changeable lens (Contax/Kiev bajonet mount), filter thread 40.5mm.
|
Shutter
|
Vertical shutter with metal lamelles, 1/2,1/5,1/10,1/25,1/50,1/125,1/250,1/500,1/1250 Sek. and B. Selftimer.
|
Light meter
|
Uncoupled selenium light meter.
|
Focussing
|
Coupled rangefinder, wheel to focus, minimum distance approx. 0.9m.
|
Transport
|
Knobs for winding and rewinding, removeable back.
|
Size
|
approx. 140/88/42mm (without lens).
|
